Part number





Detail





Diameter





Cable



Connector



MAND30L28P





For creasing iron

M5 connection for tools



30mm





Bent





4 contact XLR



MAND28L28P





For creasing iron

M5 connection for tools



28mm





Bent





4 contact XLR



MAND20L17P





For creasing iron

M5 connection for tools



20mm





Straight





4 contact XLR



MAND30L28C





For creasing iron

M5 connection for tools



30mm





Bent





3 contact XLR



MAND28L28C





For creasing iron

M5 connection for tools



28mm





Bent





3 contact XLR



MAND20L17C





For creasing iron

M5 connection for tools



2 mm





Straight





3 contact XLR


For creasing iron 20mm


For creasing iron 28-30mm

Applications

- To put a logo on leather goods thanks to a branding iron

- To burn the threads

- Single edge creaser

- Double edge creaser

- To smooth the edges





General characteristics

- High temperature black plastic handle

- Hypoallergenic matter which doesn’t transmit heat (cork)





Technical characteristics

-Power supply voltage: 24 VAC +-10% from 49 to 63 Hz, by connecting the male XLR plug

- 2 meter high temperature wire

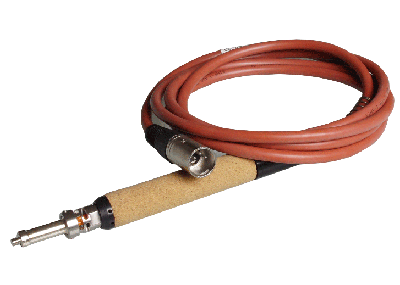

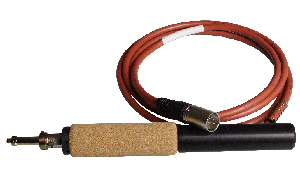

Handles for electric edge creasers with cartridge heater
