SWITCHED-MODE POWER SUPPLY with high power - Voltage and current driver

Part number

Input voltage

(V AC)

Output voltage

(V DC)

Output current

(A DC)

Wattage

(W)

HFW-500-12R

230V +/- 10%

0 - 12

0 - 35

500

HFW-500-16R

230V +/- 10%

0 - 16

0 - 30

500

HFW-500-18R

230V +/- 10%

0 - 18

0 - 30

500

HFW-600-18R

230V +/- 10%

0 - 18

0 - 38

600

HFW-600-20R

230V +/- 10%

0 - 20

0 - 30

600

HFW-600-25R

230V +/- 10%

0 - 25

600

HFW-400-50R

230V +/- 10%

0 - 50

0 - 8

600

Drive

- Voltage set-point : 0 - 10V command

- Current set-point : 0 - 10V command

- 10V internal reference output for potentiometer

Control

- Output is a copy of the voltage setting

- Output is a copy of the current setting

Mechanical characteristics

- Dimensions : 330 x 105 x 105 mm

- Mass : 2.5 kg

Mechanical option

- Rack 19’’ 4U x 360 mm : OPT4U19P360

Drive option

- USB drive : OPTUSBALI

- Ethernet drive: OPTETHALI

SWITCHED-MODE POWER SUPPLY with high power - Adjustable in voltage

Part number

Input voltage

(V AC)

Output voltage

(V DC)

Output current

(A DC)

Wattage

(W)

HPW-500-12R

230V +/- 10%

9- 12

500

HPW-500-16R

230V +/- 10%

13- 16

500

HPW-500-18R

230V +/- 10%

15- 18

500

HPW-600-18R

230V +/- 10%

15- 18

600

HPW-600-20R

230V +/- 10%

18- 20

600

HPW-600-25R

230V +/- 10%

20- 25

600

HPW-400-50R

230V +/- 10%

45 - 50

600

Output voltage setting

- Potentiometer on the front face

General characteristics

- Use temperature : -20 / +70°C

- Efficiency : 86%

- Regulation in charging : +/- 2%

Mechanical characteristics

- Dimensions : 330 x 105 x 105 mm

- Mass : 2.5 kg

Mechanical option

- Rack 19’’ 4U x 360 mm : OPT4U19P360

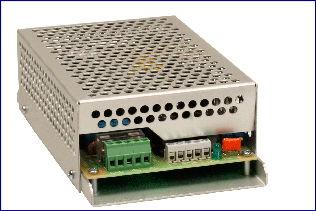

SWITCHED- MODE POWER SUPPLY with average power - Adjustable in voltage

Part number

Input voltage

(V AC)

Output voltage

(V DC)

Output current

(A DC)

Wattage

(W)

AFB-100-6R

230V +/- 10%

3.3-6

100

AFB-100-9R

230V +/- 10%

7-9

100

AFB-100-12R

230V +/- 10%

10-12

100

AFB-100-13.5R

230V +/- 10%

12-13.5

100

AFB-100-28R

230V +/- 10%

24-28

100

AFB-100-48R

230V +/- 10%

46-48

1.5

100

Output voltage setting

- Potentiometer on the front face

General characteristics

- Use temperature : -20 / +70°C

- Efficiency : 86%

- Regulation in charging : +/- 2%

Mechanical characteristics

- Dimensions : 185 X 105 X 90 mm

- Mass : 0.5 kg

Mechanical option

- Rack 19’’ 4U x 360 mm : OPT4U19P360

Part number

Input voltage

(V AC)

Output voltage

(V DC)

Output current

(A DC)

Wattage

(W)

AFW200-12/8-BV

230V +/- 10%

8 - 12

200

AFW200-40/15-BV

230V +/- 10%

15-40

200

AFW200-28/20-BV

230V +/- 10%

20-28

200

AFW200-48/35-BV

230V +/- 10%

35-48

200

AFW200-120-BV

230V +/- 10%

120

200

Output voltage setting

- Potentiometer on the front face

General characteristics

- Use temperature : -20 / +70°C

- Efficiency : 86%

- Regulation in charging : +/- 2%

Mechanical characteristics

- Dimensions : 250 X 115 X 90 mm

- Mass : 1.3 kg

Mechanical option

- Rack 19’’ 4U x 360 mm : OPT4U19P360

SWITCHED- MODE POWER SUPPLY with average power - Adjustable in tension
