PRODUCTS MADE IN FRANCE
SPECIALIST IN POWER ELECTRONIC
CONVERSION

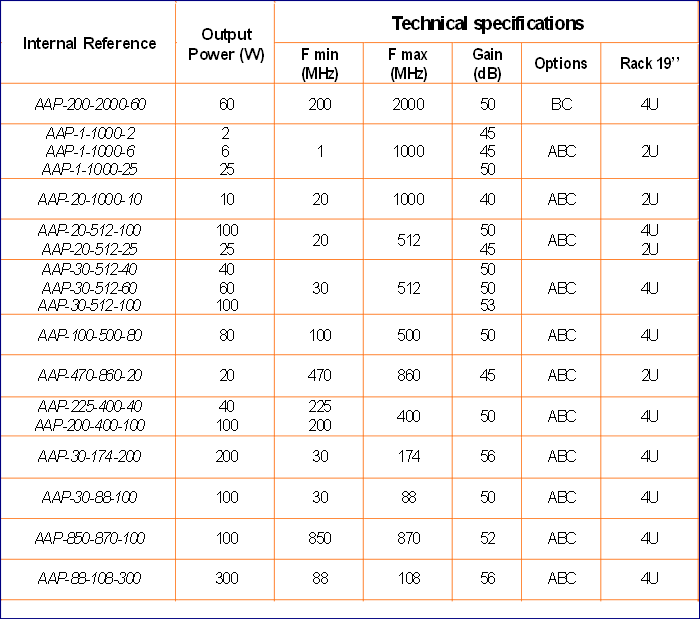

Function
Covered frequency band : 1 MHz à 2 GHz
Immediate passband: 1 MHz to 2 GHz
Power to 1 kW at 1 dB of compression
Amplifier technology in class A, AB, B, D or F
Description
Our amplifiers and our RF power generators are robust and made primarily for ultrasound applications : HF, RFI / EMI ; plasma equipements and laboratory applications as a whole.
Flexibility
For our products, we propose the latest innovations in term of drive and of power level control by the incorporation of power wattmeter and USB, RS485, RS232 and Ethernet control interface.
It is possible to control the gain and to watch the power by a simple web browser.
• AMPLIFIER (High power 250KHZ -
